Premium Rubber Coated Pot Magnet Manufacturer & Wholesale Supplier

Rubber coated pot magnets represent a highly specialized category of magnetic assemblies engineered for maximum shear stability and sensitive surface preservation. By fully encapsulating powerful Neodymium (NdFeB) magnetic cores within a thick, premium thermoplastic rubber (TPV/TPR) elastomer layer, these assemblies effectively isolate the brittle rare-earth materials from severe impact and corrosive environments. As a leading B2B manufacturing facility, we produce heavy-duty rubber coated cup magnets that combine superior non-slip holding force with scratch-free performance, providing reliable fixing and mounting systems across global automotive, marine, signage, and industrial automation sectors.

What Are Rubber Coated Pot Magnets?

Rubber coated pot magnets, also known as rubber-jacketed mounting magnets, are robust multi-pole magnetic assemblies designed to maximize friction while safeguarding contact surfaces. Unlike raw magnets that easily chip or scratch premium finishes, these units feature a durable rubber coating that acts as a high-friction buffer, dramatically increasing the lateral slide (shear) resistance when applied to vertical steel walls.

The inner structural engineering utilizes a precisely arranged multi-pole magnetic configuration, which focuses the flux lines back toward the working face to ensure excellent holding capabilities through thin layers of paint or synthetic coatings. Waterproof, weather-resistant, and completely non-marring, these versatile holding fixtures offer a repositionable, drill-free fastening system ideal for indoor and outdoor commercial applications.

Comprehensive Rubber Coated Pot Magnet Solutions We Supply

Our rubber coated pot magnet product line covers a diverse range of functional mounting formats, integrated with versatile mechanical threads, hooks, and ergonomic attachments to align seamlessly with your custom engineering specifications:

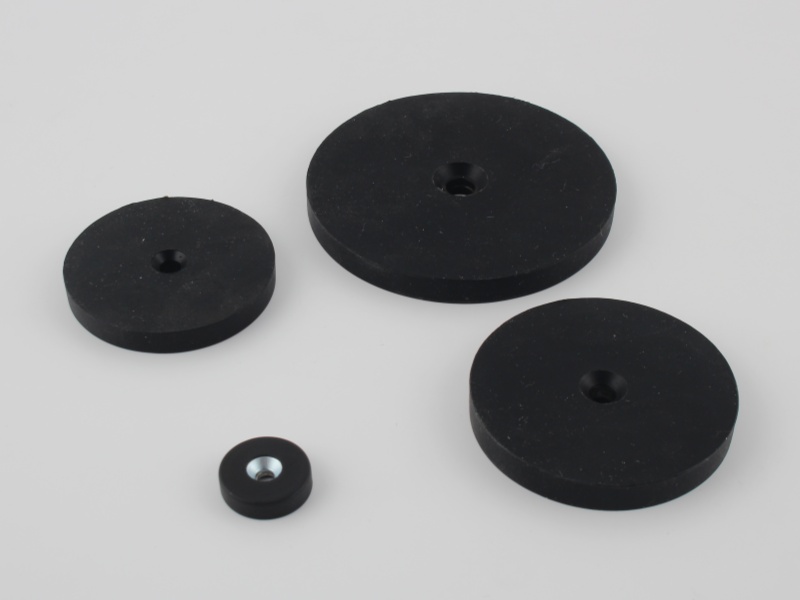

1. Standard Rubber Coated Pot Magnets

Design Features & Key Functions: Serving as the foundational model of the series, these standard pot magnets are engineered with a flat magnetic profile featuring a central metric internal thread or countersunk center hole. This design allows standard machine screws, bolts, or dowels to be flush-mounted from the top without exposing any raw metal, keeping the lower scratch-free rubber seal completely flat against the mounting surface.
Applications: Widely used for mounting industrial sensors, camera brackets, architectural retail fixtures, and interior lighting onto metal bulkheads.

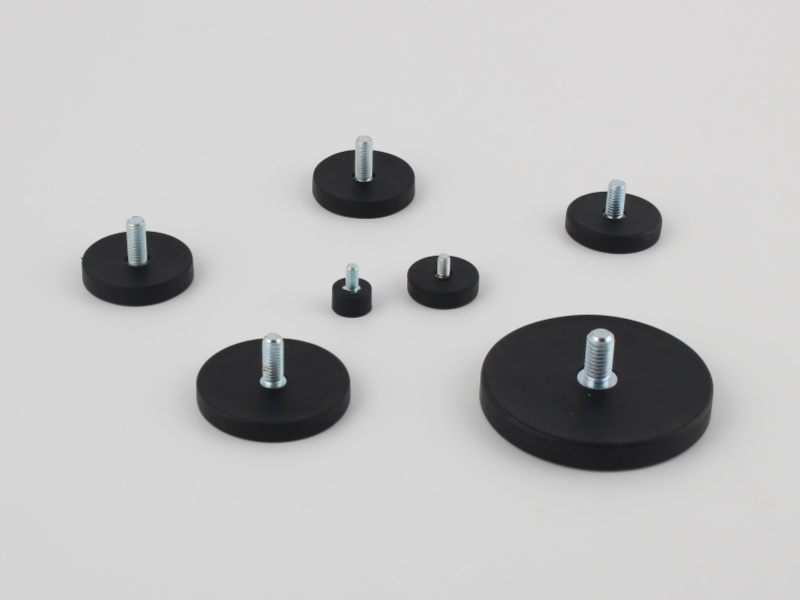

2. External Thread Stud Rubber Coated Magnets

Design Features & Key Functions: Featuring a precision-machined external threaded male stud protruding directly from the top steel backplate. This allows industrial components, mounting bars, or brackets with pre-drilled clearance holes to be dropped straight onto the thread and securely clamped down using standard hex nuts.
Applications: Perfect for temporary vehicle roof rack mounting, off-road LED light bar installations, and securing temporary control boxes to steel framing.

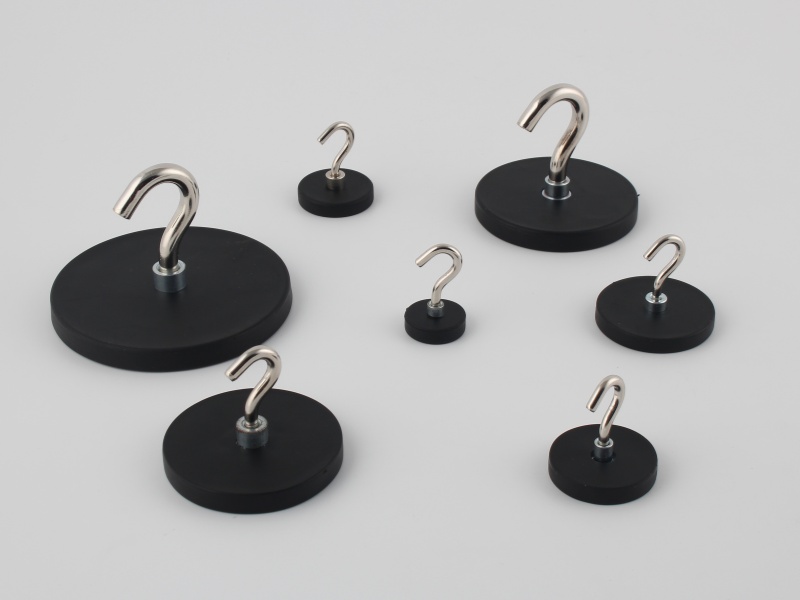

3. Rubber Coated Magnets with Open Hooks

Design Features & Key Functions: This assembly pairs our high-friction rubber base with a heavy-duty, corrosion-resistant open metal hook. It allows users to quickly suspend items without needing tools, utilizing the non-slip qualities of the rubber jacket to stop the hook from sliding down vertical steel panels under load.
Applications: Ideal for organizing workshop tools, hanging temporary safety curtains, factory floor signs, and suspending retail display banners on steel columns.

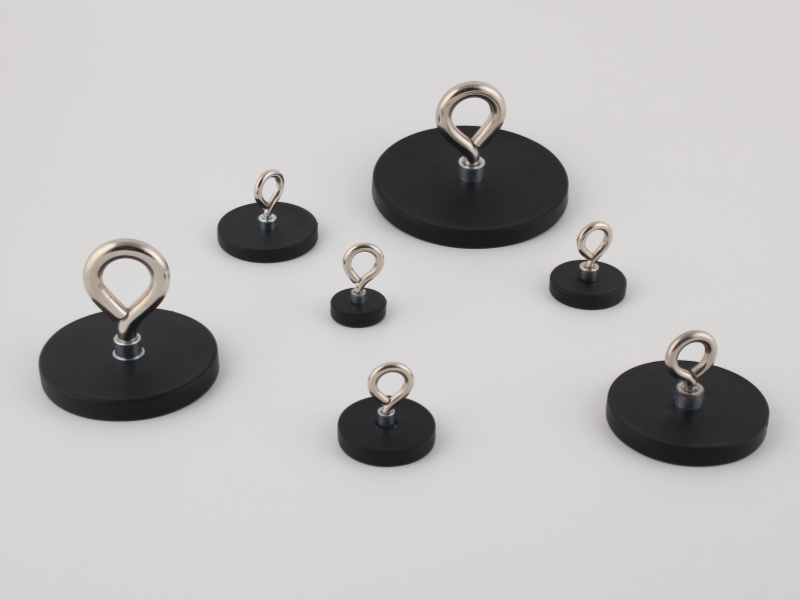

4. Rubber Coated Magnets with Closed Eyebolts

Design Features & Key Functions: Outfitted with a fully closed threaded eyebolt or ring attachment screwed into the magnetic core. The closed-loop design guarantees that cables, structural carabiners, or tension ropes stay securely anchored within the loop without any risk of slipping out under dynamic tension.
Applications: Extensively utilized for marine rope management, industrial cargo tie-downs, outdoor banner suspension, and staging rig lines.

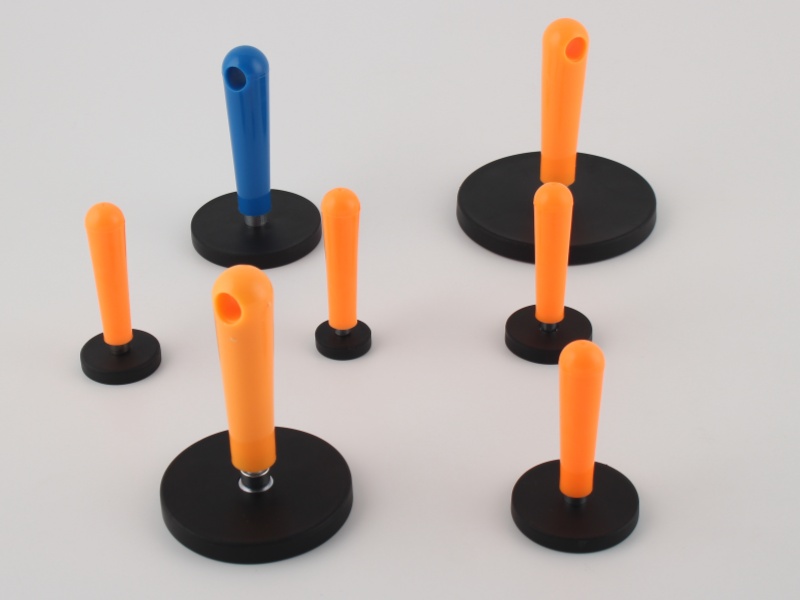

5. Rubber Coated Magnets with Plastic Handles

Design Features & Key Functions: Specifically engineered with a high-visibility, ergonomic plastic grip handle attached to the center stud. Because heavy-duty Neodymium magnets can be extremely difficult to peel off flat steel plates manually, the vertical handle acts as a lever to significantly reduce removal effort and protect operators from finger pinching.
Applications: Frequently deployed as vehicle wrapping magnets, temporary positioning tools for automotive vinyl graphic applications, and inspection holding tools.

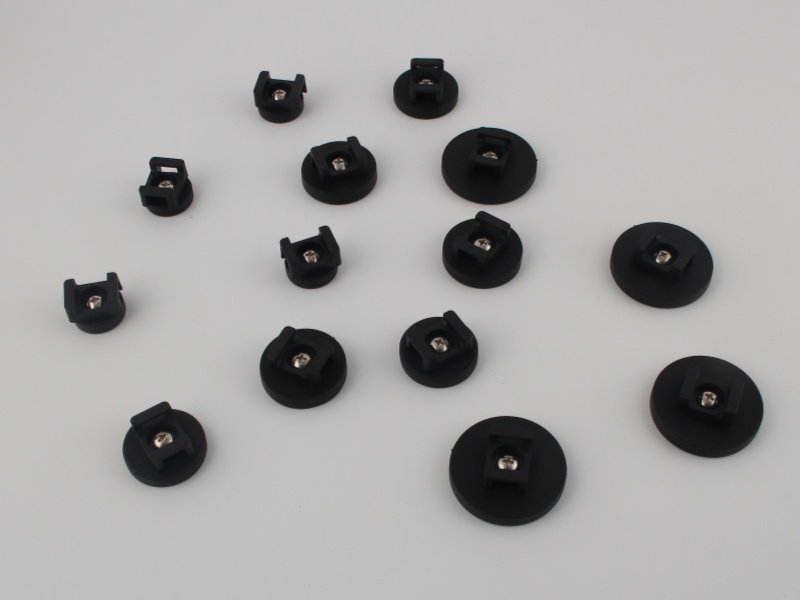

6. Rubber Coated Magnets with Cable Tie Mounts

Design Features & Key Functions: Integrated with a tough, molded plastic cable tie saddle securely fixed to the top face. This specialized unit acts as a zero-damage, repositionable route organizer, allowing industrial zip ties to pass through and neatly manage heavy wire bundles or pneumatic hoses directly along steel framework.
Applications: Perfect for electrical control cabinet wiring, automation machinery hose routing, temporary event power cable management, and vehicle engine bay mockups.

Why Use Rubber Coated Pots Instead of Stand-Alone Magnets?

While individual permanent magnets provide raw magnetic force, they are inherently fragile and often waste field energy by radiating flux in all directions. Integrating these magnets into secondary rubber-coated assemblies provides key advantages for commercial and industrial users:

• Unmatched Shear Force (Slip Resistance): On vertical surfaces, standard bare metal magnets easily slide downwards because metal-on-metal contact has a low friction coefficient. Our specialized rubber jackets act as high-friction liners, yielding a shear resistance up to several times higher than raw magnets.
• Total Scratch-Free Surface Protection: When mounting equipment onto high-end painted cars, coated machinery, or polished architectural metals, raw magnets pose an immediate risk of scraping coatings. The soft rubber shell acts as a protective shield that completely eliminates surface marring and paint abrasion.
• Hermetic Corrosion and Waterproofing Seal: Sintered Neodymium is vulnerable to oxidation and moisture degradation. Fully overmolding the internal magnetic core within premium rubber creates a hermetic seal, protecting it from moisture, weather conditions, and washdown environments.
• Simplified Mechanical Integration: Designed with standard built-in threaded holes, external studs, hooks, handles, and custom cable mounts, these assemblies save engineering time and labor by avoiding complex bonding or drilling steps on your assembly line.

Comparison of Rubber Coated Pot Formats

The table below highlights the performance characteristics and structural differences across our rubber coated pot magnet product line to help guide your selection process:

Assembly Type	Holding Capacity	Shear (Slide) Resistance	Moisture Resistance	Primary Application
Standard Rubber Coated Pot	High / Flush Fit	Outstanding	Excellent (Sealed Face)	Sensor Mounting & Architectural Fixtures
External Thread Stud	High / Stud Clamp	Outstanding	Excellent	Vehicle Roof Racks & LED Bars
With Open Hooks	Medium to High	Very High (Non-Slip)	High (Plated Components)	Workshop Organization & Sign Hanging
With Closed Eyebolts	High / Locked Ring	Very High (Non-Slip)	Excellent	Marine Rope Anchors & Outdoor Banners
With Plastic Handles	Optimized for Manual Use	Outstanding	High	Car Vinyl Wrapping & Positioning Tools
With Cable Tie Mounts	Light to Medium	High / Secure Mount	Outstanding (Plastic Cap)	Industrial Wire & Hose Routing Management

How to Choose the Right Rubber Coated Pot Assembly?

Choosing the ideal rubber-coated magnetic mounting system involves balancing raw magnetic strength with real-world technical and physical variables. Consider these critical factors during evaluation:

• Air Gap, Coatings, and Thickness: While raw magnetic pull tests use thick, unpainted iron plates, thick layers of paint, powder coatings, or protective films introduce an "air gap." Select high-grade, multi-pole rubber assemblies that maintain magnetic circuit intensity across thin painted steel surfaces.
• Environmental Exposure and Temperature: While standard rubber overmolding shields components from water and chemical contact, continuous operating temperatures above 80°C (176°F) can degrade standard Neodymium cores. For engine compartments or manufacturing ovens, specify high-temperature magnet variants.
• Mechanical Hardware Alignment: For fixed-angle structural bars or heavy industrial components, choose our External Thread Studs. For dynamic, toolless suspension layouts on walls or warehouse columns, choose between Open Hooks or non-slip Closed Eyebolts based on security needs.

Design, Engineering, and Manufacturing Capabilities for Custom Assemblies

Advanced Rubber Overmolding Technology

Combining rare-earth magnets with precision iron cores and elastomer layers demands strict process control. Our automated rubber injection overmolding lines ensure balanced elastomer wall thickness, accurate mechanical dimensions, and strong material bonding that prevents tears and material separation during tough operations.

Custom Magnetic Circuit Optimization

Standard off-the-shelf formats may not meet specific holding requirements. Our engineers use advanced finite element analysis (FEA) to arrange magnetic pole configurations. We maximize shear holding efficiency and lower project raw material costs for bulk production lines.

Rigorous Quality Control and Salt Spray Validation

Every batch undergoes strict mechanical inspection. We utilize automated testing systems to verify breakaway holding capacities and lateral slide forces, alongside salt spray testing to check coating durability. This ensures every mounting component arrives fully certified for immediate industrial integration.

Why Partner with Us for Your Rubber Coated Pot Magnets?

We go beyond simply manufacturing magnets—we engineer reliable, scalable, and high-precision holding solutions tailored to the strict demands of global retail and industrial markets. Backed by a highly optimized supply chain, advanced molding lines, and strategic proximity to major logistics hubs like Ningbo Port, we significantly minimize lead times while delivering uncompromised B2B quality.

Whether you need to develop high-efficiency External Thread Studs for automotive lighting supply, retail-ready Plastic Handles for vinyl graphic installation, or heavy-duty Cable Tie Mounts for dynamic machinery hose layouts, we work closely with your procurement and engineering teams from initial prototyping to mass production. Contact our engineering team today to share your dimensions, submit custom CAD drawings, or request free evaluation samples.
