Magnetic Assemblies

Common Types of Magnetic Assemblies We Supply

Our magnetic assemblies cover a wide range of functional product forms, from steel-cased structures developed for maximized pulling force to protective-coated fixtures designed for delicate surfaces. Each type offers a distinct balance of holding strength, environment compatibility, and application-specific efficiency:

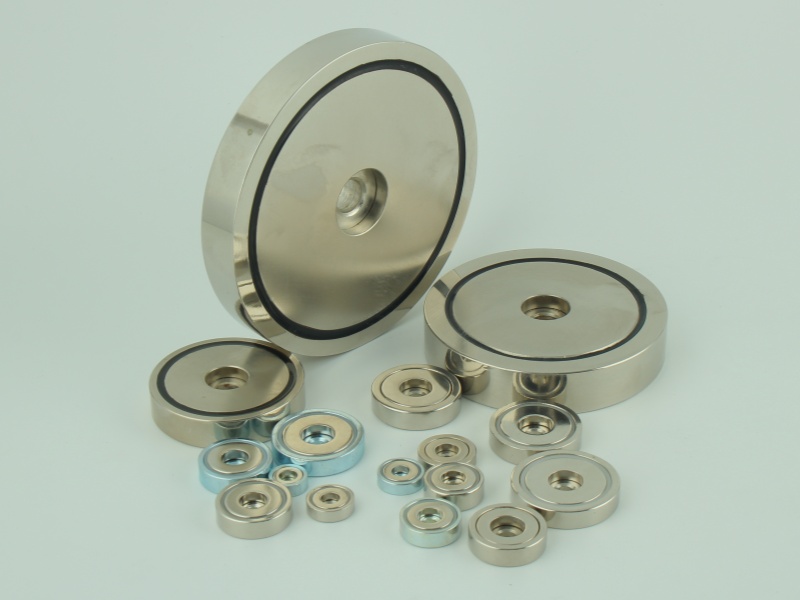

1. Magnetic Pot

Utilizing robust steel casings to redirect and multiply magnetic circuits, these high-efficiency pot magnets provide exceptional holding force when in direct contact with ferrous materials. They serve as reliable foundational components for industrial fixtures and workshop mounting.

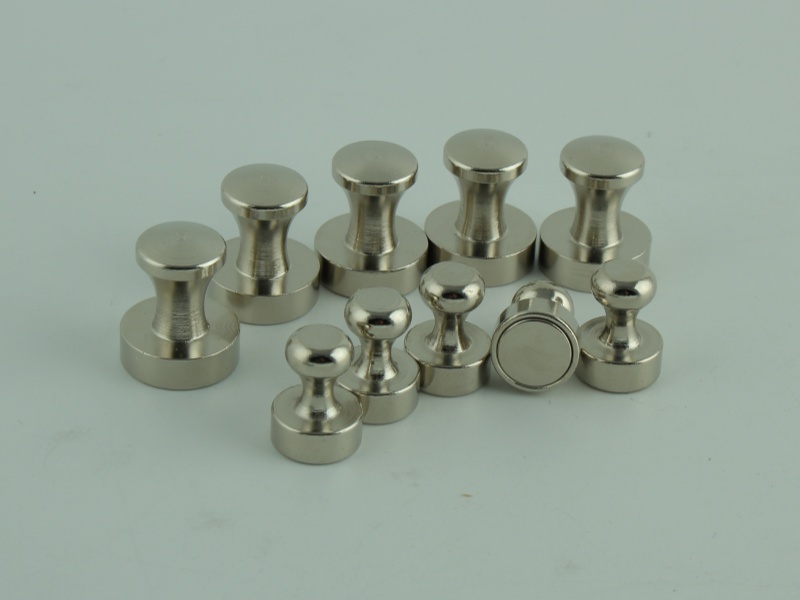

2. Office Magnet

Designed for daily organizational and commercial display needs, these compact and ergonomically shaped magnets allow easy manual positioning without sacrificing reliable holding strength. They are ideal for whiteboards, retail signage, and magnetic notice boards.

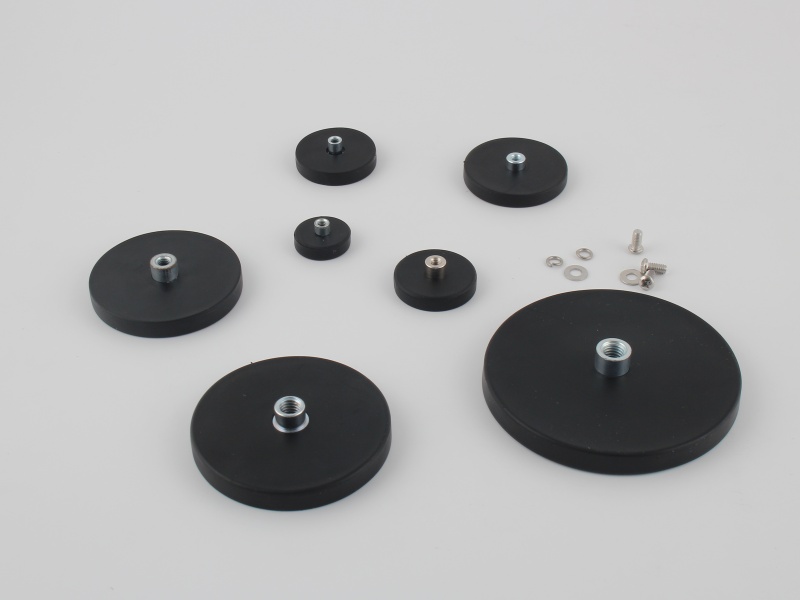

3. Rubber Coated Pot

Featuring a thick, premium rubber outer layer, these specialized pot magnets provide a non-slip, high-friction hold while ensuring comprehensive, scratch-free surface protection. They are the perfect solution for mounting onto painted or delicate vehicle surfaces.

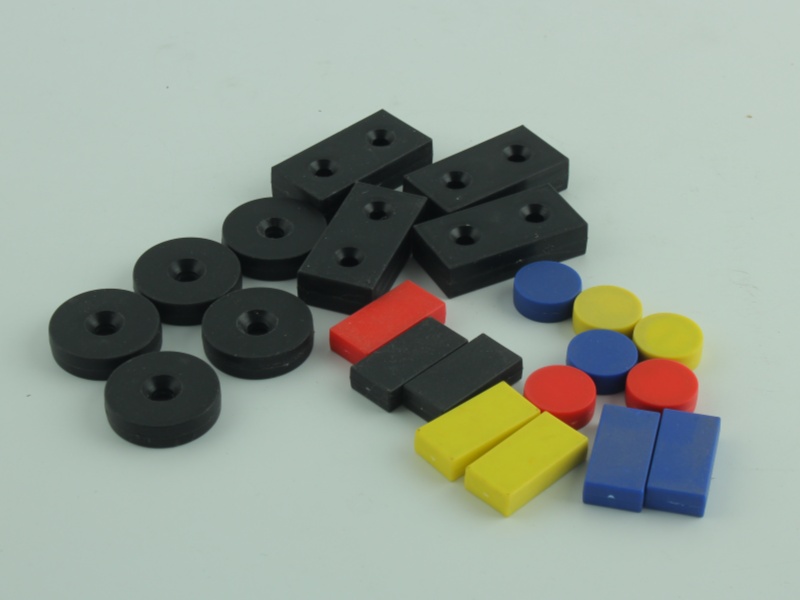

4. Plastic Coated Magnet

Fully enclosed in a durable plastic shell, these versatile magnets offer outstanding waterproof capabilities and superior weather resistance. They prevent marring on sensitive contact areas and excel in severe outdoor, wet, or marine applications.

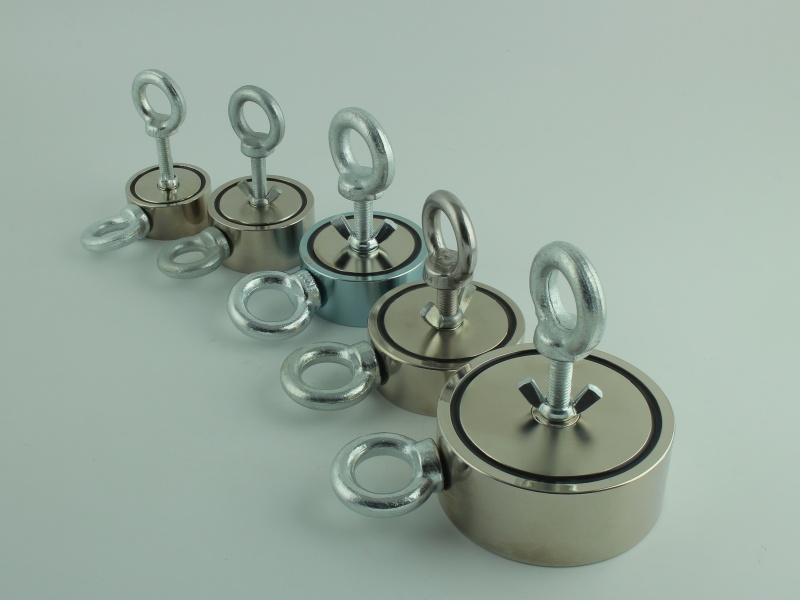

5. Fishing Magnet

Engineered specifically for underwater retrieval and heavy lifting, these heavy-duty assemblies deliver maximum concentrated pulling power. Built to withstand impact, they focus their intense magnetic flux on a single surface to salvage iron or steel objects from water depths.

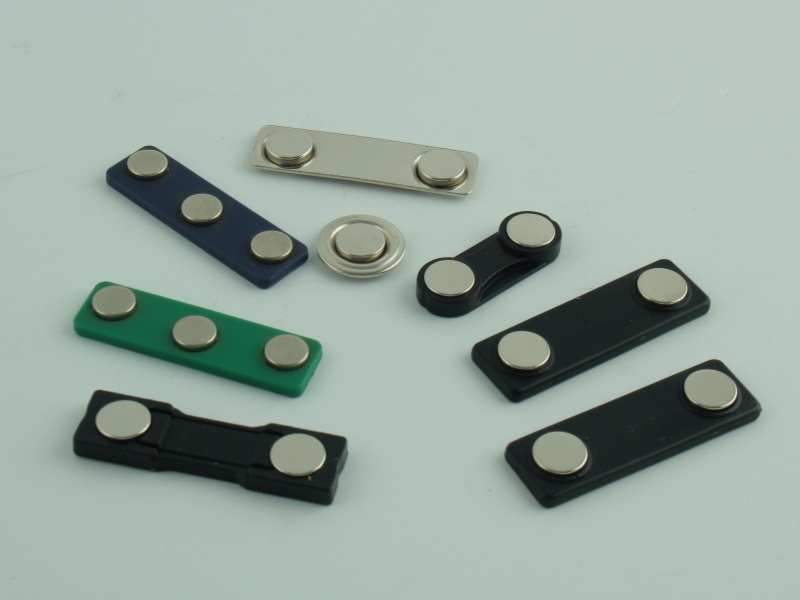

6. Magnetic Badge

Designed to securely attach corporate ID tags, nameplates, and event badges to clothing without piercing the fabric. Utilizing a dual-piece magnetic backplate design, they provide a strong, professional grip that completely eliminates pinholes or fabric damage on expensive suits and uniforms.

Why Use Magnetic Assemblies Instead of Stand-Alone Magnets?

While individual permanent magnets provide basic raw magnetic force, they are inherently fragile and often waste field energy by radiating flux in all directions. Integrating these magnets into secondary assemblies provides key advantages for commercial and industrial users:

• Optimized and Focused Power: Through specialized structural engineering (such as steel cups used in our Magnetic Pots), the magnetic field is directed and multiplied onto a single working surface, delivering up to triple the holding force of a raw magnet.
• Structural Protection: Brittle magnetic materials are easily chipped or shattered upon impact. Surrounding them with steel casings, durable plastics, or thick rubber coatings safeguards the internal core for an extended service life.
• Surface Preservation: Raw metal contact can ruin expensive finishes. Advanced assemblies like Rubber Coated Pots, Plastic Coated Magnets, and fabric-safe Magnetic Badges offer non-marring properties to protect delicate contact areas.

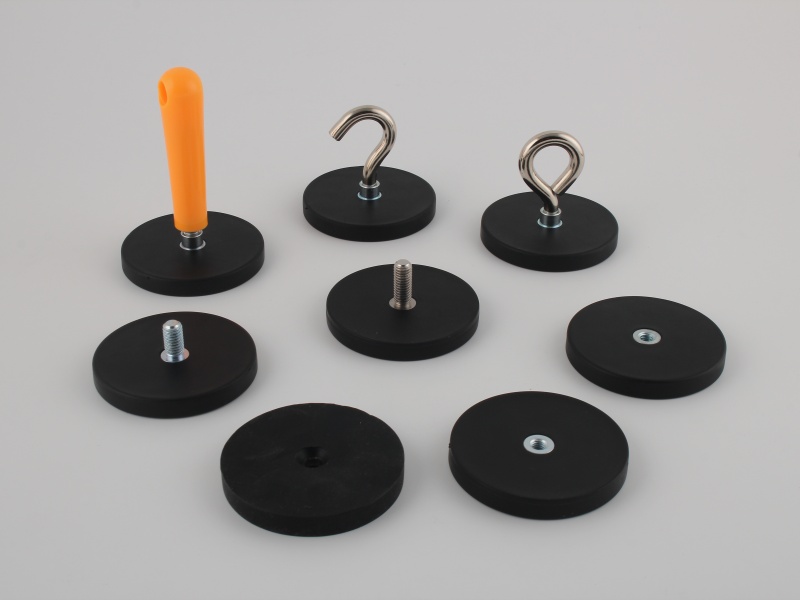

• Simplified Integration & Daily Utility: Built-in internal threads, hooks, countersunk holes, or compact clip configurations eliminate the need for complicated bonding or mounting setups on your line or wardrobe.

Comparison of Magnetic Assembly Formats

The table below highlights the key performance characteristics and structural differences across our magnetic assembly product line to help guide your selection process:

Assembly Type	Holding Force	Surface Protection	Corrosion Resistance	Primary Application
Magnetic Pot	High / Focused	Standard (Metal Contact)	Good (NiCuNi or Zn Coating)	Industrial Fixtures & Shop Mounting
Office Magnet	Light to Medium	Excellent	High	Whiteboards, Displays & Retail Signage
Rubber Coated Pot	High / Non-Slip Friction	Outstanding (Scratch-Free)	Excellent (Weatherproof)	Vehicle Mounting & Sensitive Surfaces
Plastic Coated Magnet	Medium to High	Excellent (Anti-Marring)	Outstanding (Waterproof)	Severe Outdoor & Marine Applications
Fishing Magnet	Maximum / Concentrated	Standard (Metal-to-Metal)	Excellent (Plated / Sealed)	Underwater Retrieval & Heavy Lifting
Magnetic Badge	Light / Secure Grip	Excellent (Fabric Safe)	High	Corporate ID Tags, Nameplates & Uniforms

How to Choose the Right Magnetic Assembly?

Choosing the ideal magnetic assembly involves balancing raw magnetic performance with practical installation and environmental constraints. To optimize your design or choose the right product, consider the following critical factors:

• Air Gap vs. Material Thickness: Steel-housed Magnetic Pots redirect the magnetic circuit to multiply holding power, but they require direct contact with sufficiently thick ferrous plates to reach their full rated capacity.
• Handling & Functional Utility: For daily commercial organization, retail displays, or warehouse whiteboards, compact and ergonomically shaped Office Magnets allow easy manual positioning without sacrificing reliable holding strength.
• Surface Protection & Friction Requirements: When mounting onto painted, delicate, or high-vibration surfaces like vehicles, utilizing Rubber Coated Pots provides a scratch-free, high-friction hold that prevents sliding. For apparel use, Magnetic Badges ensure fabric safety without pins.
• Operating Environment & Moisture Exposure: For permanent outdoor installations, marine use, or deep-water salvage, heavy-duty Fishing Magnets or fully sealed Plastic Coated Magnets offer superior long-term defense against rust, chemical exposure, and impact.

Design, Engineering, and Manufacturing Capabilities for Custom Assemblies

Advanced Material Integration

Combining rare-earth magnets with precision iron stampings, stainless steel housings, rubber overmolding, or injected plastics requires deep engineering expertise. We guarantee uniform pull force distribution, perfect geometric alignment, and durable bonding that stands up to severe operational stresses.

Custom Magnetic Circuit Design

When standard off-the-shelf options fall short, our technical team simulates magnetic pathways to design custom systems. We manipulate flux patterns to reduce stray fields, maximize localized holding capabilities, and save raw material costs for high-volume programs.

Rigorous Quality and Pull-Force Validation

Every batch undergoes standardized mechanical and magnetic inspection. Utilizing precise automation testing, we verify critical breakaway holding forces, shear loads, and layer thickness compliance, ensuring that every assembly arrives ready for direct field integration.

Why Partner with Us for Your Magnetic Assemblies?

We go beyond simply manufacturing magnets—we engineer reliable, scalable, and high-precision holding solutions tailored to the strict demands of global retail and industrial markets. Backed by a highly optimized supply chain, advanced overmolding lines, and deep component manufacturing expertise, we significantly minimize lead times while delivering uncompromised quality.

Whether you need to develop high-efficiency Magnetic Pots, retail-ready Office Magnets, specialized Rubber Coated Pots for industrial holding configurations, or damage-free Magnetic Badges for corporate identity programs, we work closely with your engineers from initial prototyping to high-volume manufacturing. Contact our engineering team today to share your dimensions, target pulling forces, or application requirements, and let us build your ideal custom magnetic solution.
