Main Types of Permanent Magnets
Industrial permanent magnets are primarily available in two major material types that dominate the modern market. Each type offers a distinct balance of magnetic strength, temperature resistance, and cost efficiency:
1. Neodymium (NdFeB) Magnets
Often referred to as "rare earth magnets," Neodymium magnets are the strongest permanent magnets available today. They offer exceptionally high magnetic output relative to their size, making them the go-to choice for compact and high-performance applications. However, they generally require protective coatings to prevent corrosion.
2. Ferrite Magnets
Also known as ceramic magnets, Ferrite magnets are made from iron oxide mixed with ceramic materials. While their magnetic strength is lower than rare earth magnets, they are highly cost-effective, corrosion-resistant, and widely used in high-volume commercial applications.

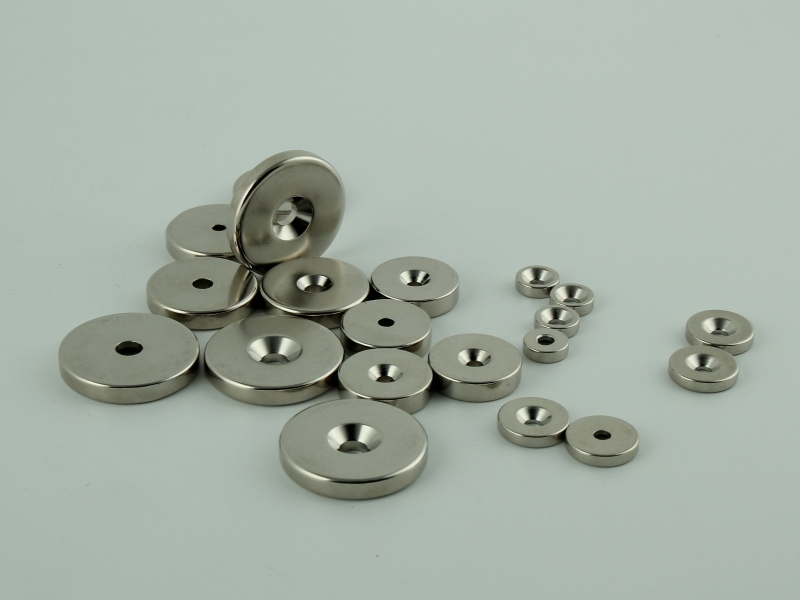

Neodymium (NdFeB) Magnets

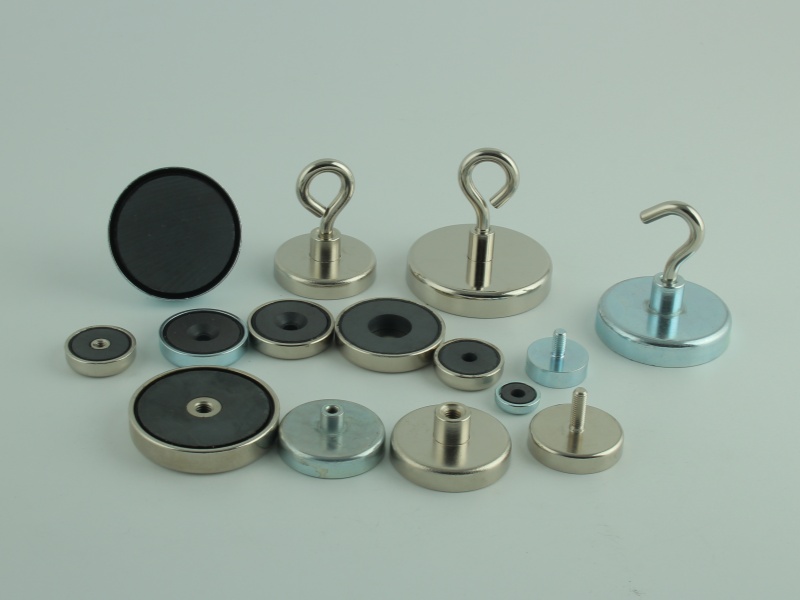

Ferrite (Ceramic) Magnets
Comparison of Permanent Magnet Materials
The table below highlights the key differences between the two main types of permanent magnets to help guide your selection process:
|
Magnet Type |
Magnetic Strength |
Temperature Resistance |
Corrosion Resistance |
Cost/Value |
|
Neodymium (NdFeB) |
Highest |
Low to Medium |
Poor (Requires coating) |
Medium |
|
Ferrite (Ceramic) |
Low |
Good |
Excellent |
Very Economical |
How to Choose the Right Permanent Magnet Material?
Choosing the ideal permanent magnet material requires a careful balance between raw magnetic performance and actual operating conditions. The "strongest" magnet is not always the best fit for every project.
When selecting a material, ensure you consider the following critical factors:
-
Available Space & Dimensions: If space is limited but high force is required, Neodymium is typically the ideal candidate.
-
Operating Temperature: While Ferrite handles elevated temperatures well, Neodymium requires special high-coercivity grades (such as SH, UH, or EH) to prevent demagnetization at higher temperatures.
-
Corrosion Exposure: Applications exposed to moisture or harsh chemicals will benefit from inherently resistant Ferrite, whereas Neodymium magnets must be properly plated (e.g., NiCuNi, Zinc, or Epoxy).
-
Mechanical & Cost Targets: High-volume, cost-sensitive projects often default to Ferrite magnets unless high performance and strict compactness dictate the use of Neodymium.
Key Applications of Permanent Magnets
Modern industry relies heavily on permanent magnets across a massive spectrum of applications. Some of the most common include:
Looking for Expert Assistance? At SDM Magnetics, we support customers across different permanent magnet materials and complex application requirements. From custom dimensions, tolerances, and specialized coatings to full prototype assembly, we deliver tailored magnetic solutions for your specific project needs.
